Voorzetwand Prégyplac standaard met dubbele plaat - 100mm profielen - 125mm wanddikte - glaswol
Een lichte, onbelaste voorzetwand bestaande uit een geraamte in metalen profielen met aan één zijde twee gipsplaten. In de spouw wordt glaswolisolatie voorzien.
Systeemprestaties en details

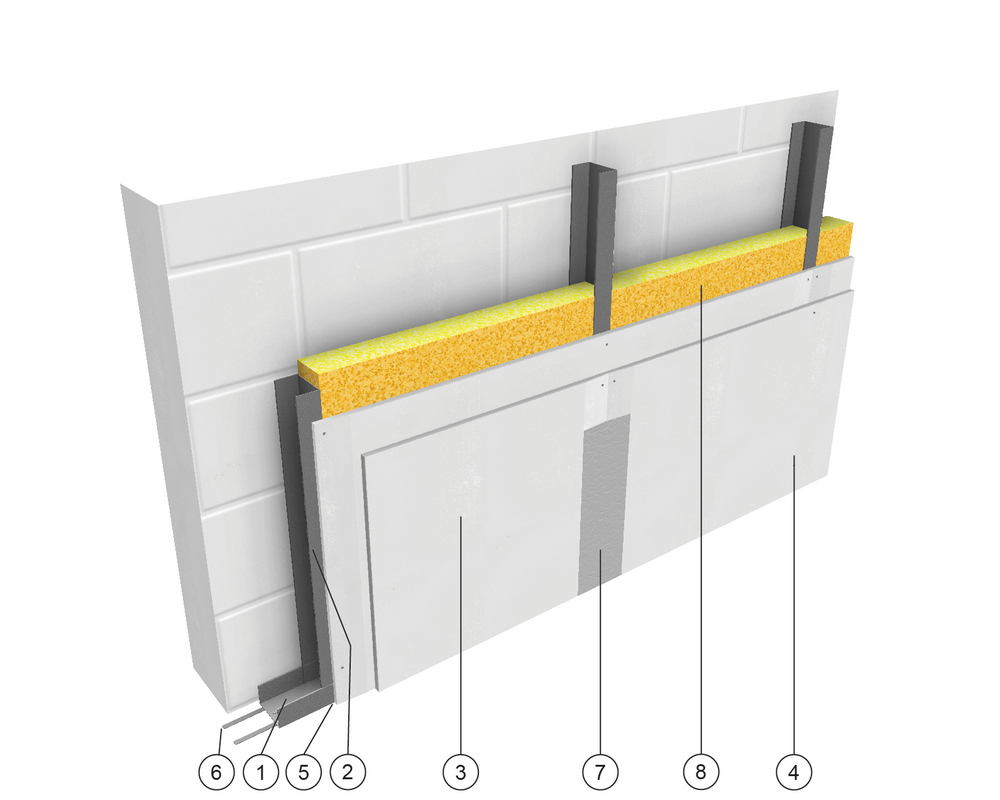

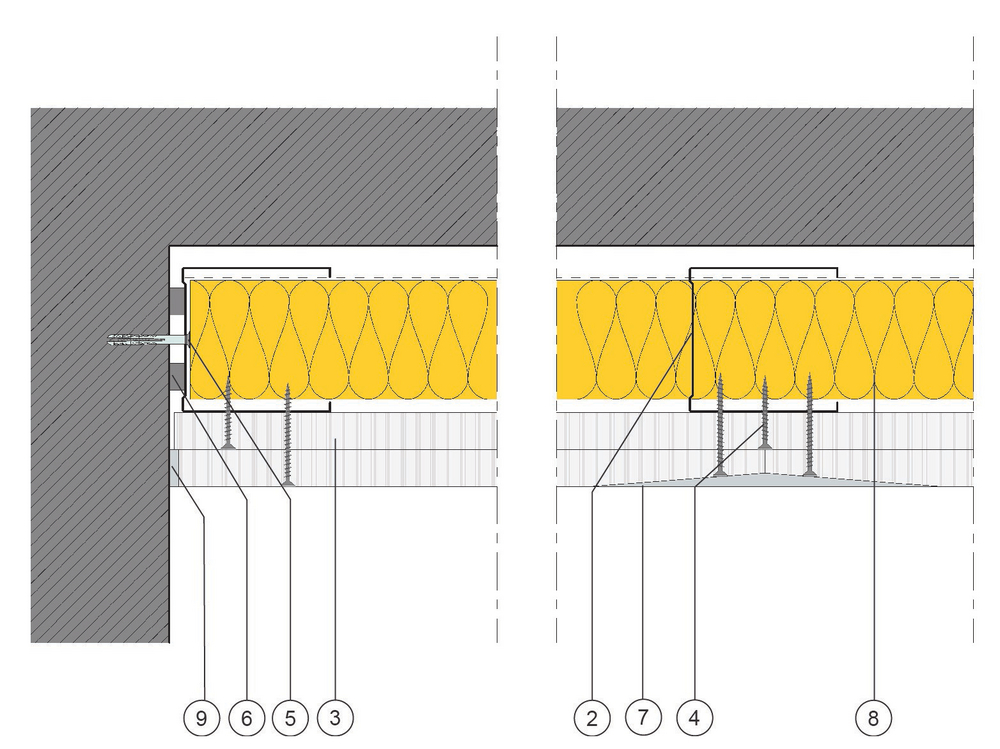

Opbouw:
1. Siniat horizontaal profiel enkel UW 100 2. Siniat verticaal profiel enkel CW 100 h.o.h. 600 mm 3. 2 x 12,5 mm Prégyplac Std gipsplaat type A volgens EN520 4. 2 x 12,5 mm Prégyplac Std gipsplaat type A volgens EN520 5. Siniat schroeven; 1e laag 25 mm h.o.h. 750 mm, zichtlaag 35 mm h.o.h. 250 mm 6. Bevestiging randprofiel aan constructie h.o.h. max. 800 mm 7. Siniat akoestische band 8. Siniat voegproducten & papieren voegband 9. GlasWol; dikte = 75 mm; densiteit minimaal = 15 kg/m³ 10. Siniat voegwerk ∅6x60 * De beplating wordt gemonteerd met verspringende verticale en horizontale voegen.
