Voorzetwandwand Prégyplac standaard - met enkele plaat - 150mm profielen - 162,5mm wanddikte - rotswol (125mm)
Een lichte, onbelaste voorzetwand bestaande uit een geraamte in metalen profielen met aan één zijde één gipsplaat In de spouw wordt rotswolisolatie voorzien.
Systeemprestaties en details

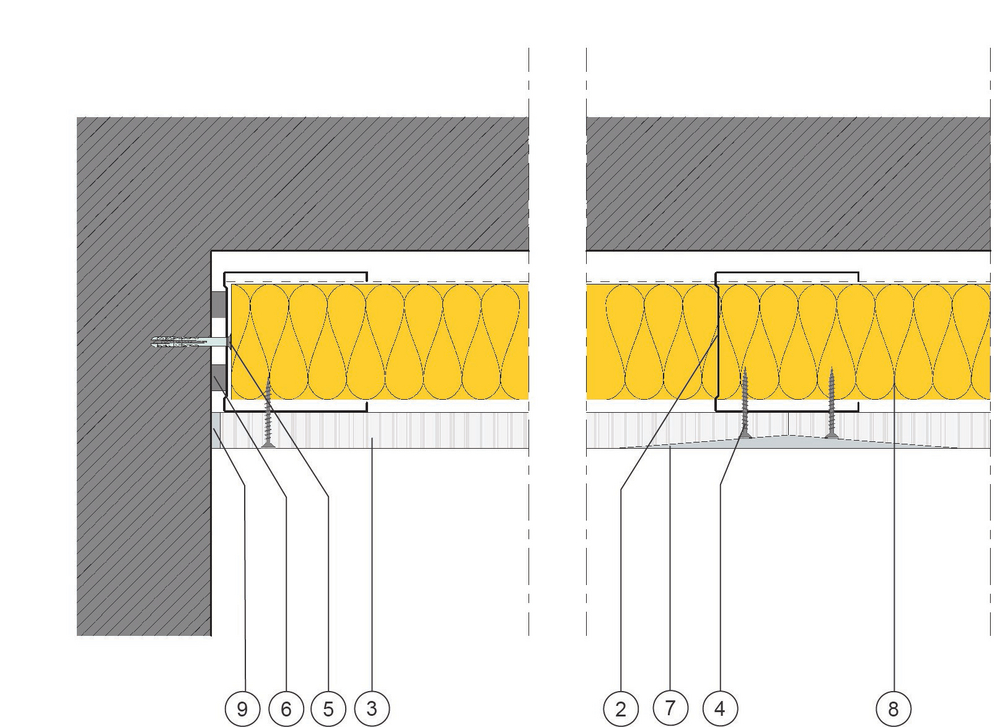

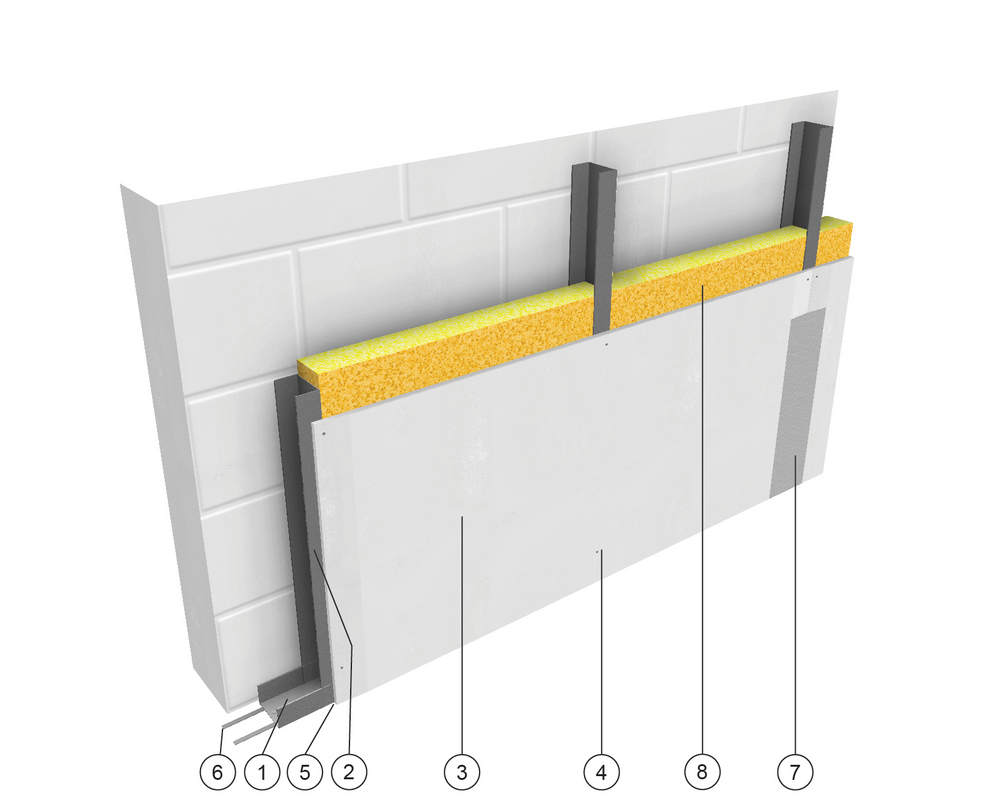

Opbouw:
1. Siniat horizontaal profiel enkel UW 150
2. Siniat verticaal profiel enkel CW 150 h.o.h. 600 mm
3. 1 x 12,5 mm Prégyplac Std gipsplaat type A volgens EN520
4. 1 x 12,5 mm Prégyplac Std gipsplaat type A volgens EN520
5. Siniat schroeven; 25 mm h.o.h. 250 mm
6. Bevestiging randprofiel aan constructie h.o.h. max. 800 mm
7. Siniat akoestische band
8. Siniat voegproducten & papieren voegband
9. RotsWol; dikte = 125 mm; densiteit minimaal = 35 kg/m³
10. Siniat voegwerk
