Scheidingswand met enkele plaat aan elke kant - Prégyplac standaard - 50mm profielen - 75mm wanddikte - glaswol (40mm)
Een lichte, onbelaste scheidingswand bestaande uit een geraamte in metalen profielen met aan beide zijden één standaard gipsplaat. In de spouw wordt glaswolisolatie voorzien.
Systeemprestaties en details

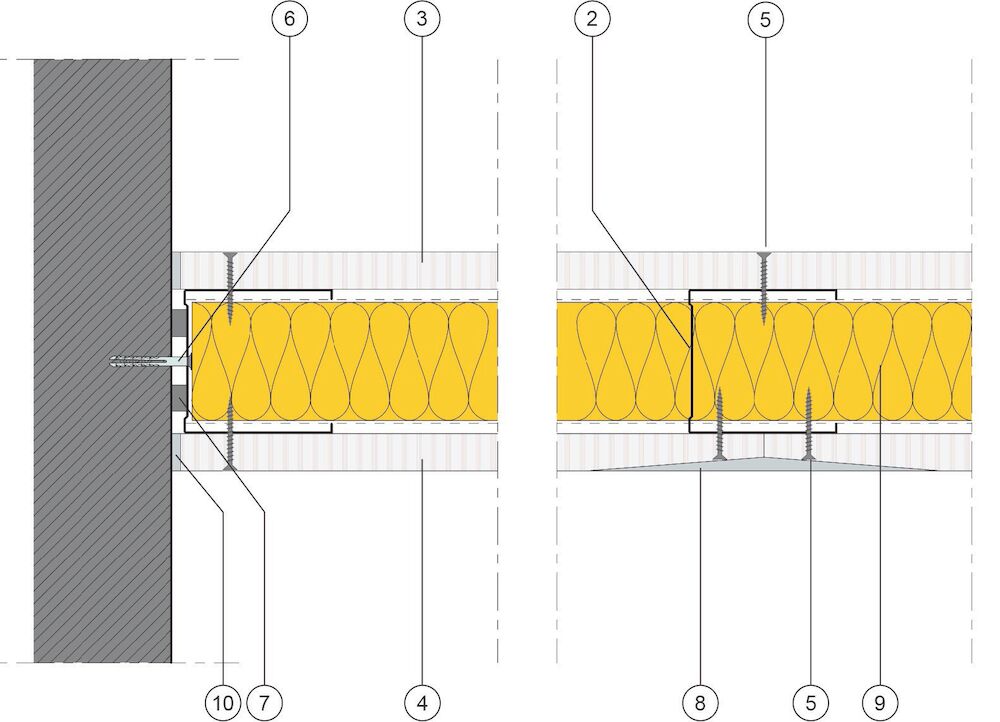

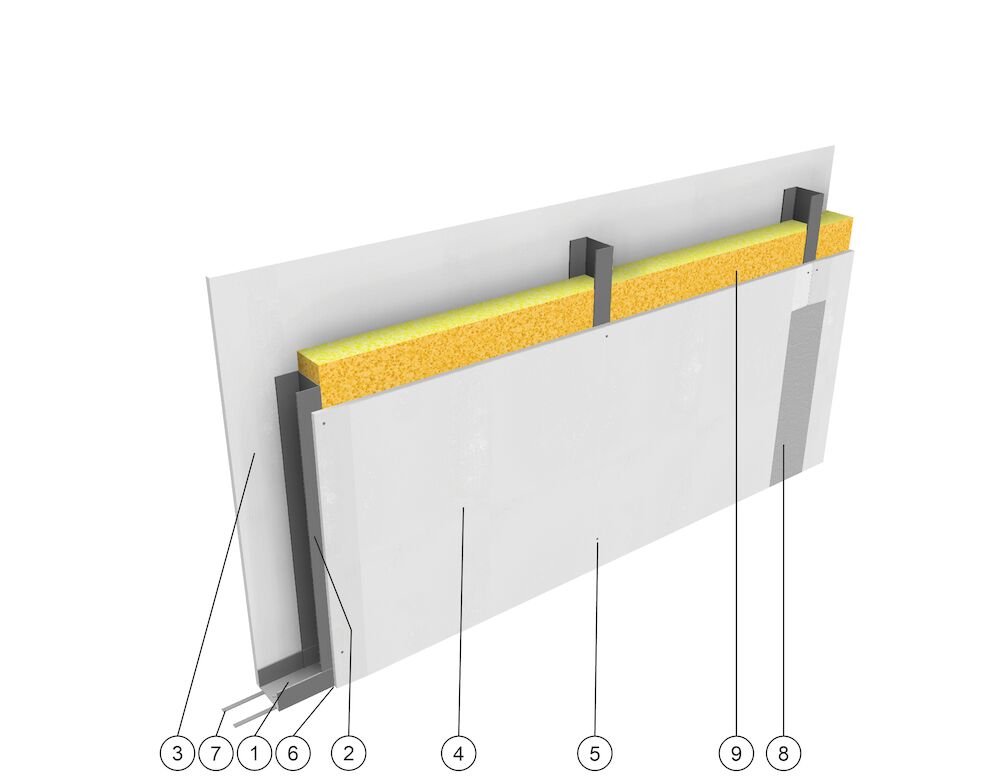

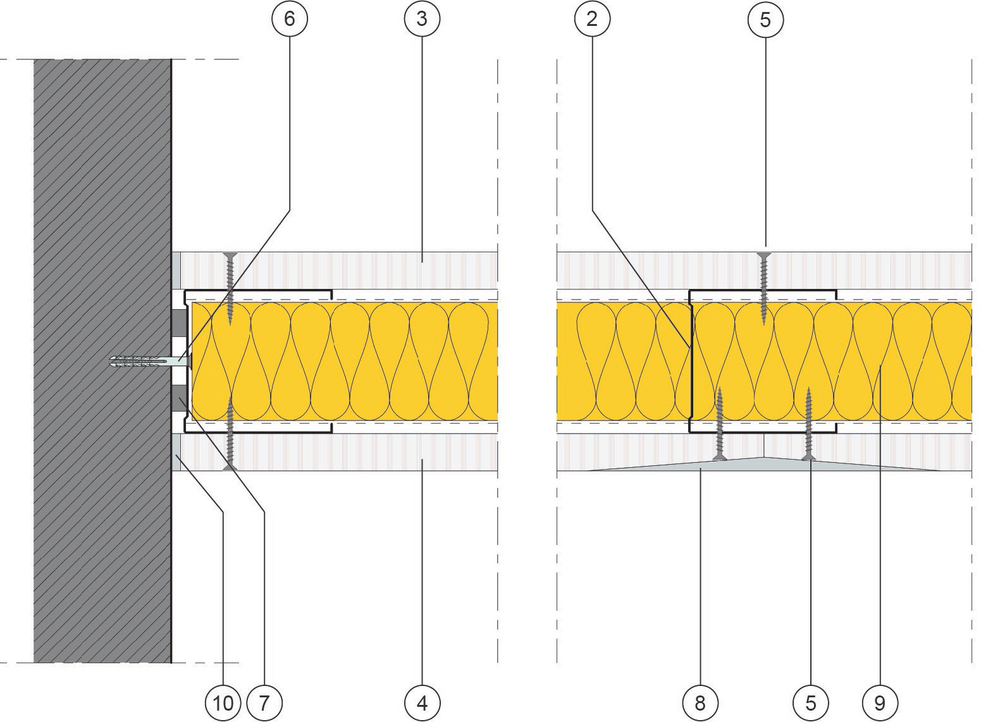

Opbouw:
1. Siniat horizontaal profiel enkel UW 50 2. Siniat verticaal profiel enkel CW 50 h.o.h. 600 mm 3. 1 x 12,5 mmPrégyplac Std gipsplaat type A volgens EN520 4. 1 x 12,5 mmPrégyplac Std gipsplaat type A volgens EN520 5. Siniat schroeven; 25 mm h.o.h. 300 mm 6. Bevestiging randprofiel aan constructie h.o.h. max. 800 mm 7. Siniat akoestische band 8. Siniat voegproducten & papieren voegband 9. Glaswol; dikte = 40 mm; densiteit minimaal = 15 kg/m³ 10. Siniat voegwerk * Speling tussen de stijlen en de bovenregel in functie van de wandhoogte. Contacteer het Technical Excellence Centre voor meer info.
